The RoutBot® CNC Controller Software is an advanced, high performance and low cost, PC based motion controller for
CNC machine that can precisely control up to 4 linear or rotational axis simultaneously. The RoutBot® Controller Software is professionally made, easy to utilize and versatile.
In addition to linear and rotational motion control, it can also be utilized to control : variable speed spindle, relays, on/off motors, etc.

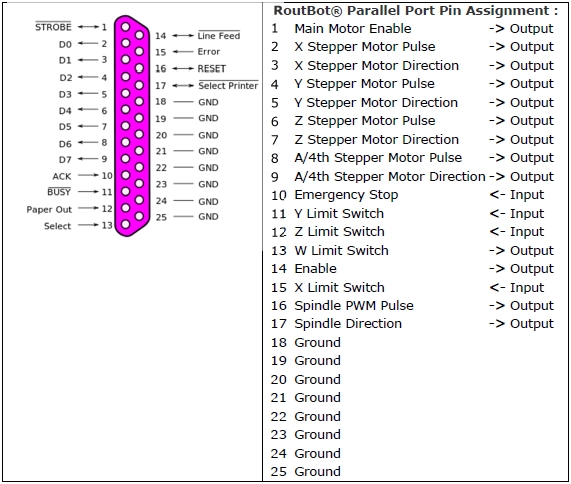

The RoutBot® Controller Software utilizes the "Standard IBM compatible PC Parallel Port" for communication.
The RoutBot® Controller Software can be utilized with almost any stepper motors. The RoutBot® Controller Software can be
easily configured using a friendly user interface. The RoutBot® Controller Software is flexible and can be utilized with almost any motor driver box or
with a break out board.
"Install RoutBot® CNC on a WIN10, 8, 7, XP, or 2K PC"
RoutBot® CNC comes with 2 CD’s; an installation CD and a boot CD.
The first CD is the installation CD which is used to install RoutBot® CNC friendly graphical user interface on a Win10, 8, 7, XP, or 2K desktop or laptop computer.
The computer that you install the graphical user interface on, can be a computer that you commonly used to perform other tasks.
This is possible since RoutBot® CNC graphical user interface requires very little CPU resources and do not slow down your computer.
The second CD is the boot CD which is used to boot the CNC Controller PC. Any desktop or laptop PC computer in good working condition can be used as CNC Controller once it is booted with the boot CD.
The Graphical User Interaface computer and the CNC Controller computer are connected via a RS232 to RS232 (Null Modem) cable. When the Graphical User Interface cable has a RS232 port (usually called COM1 or COM2),
it can be connected directly to the CNC Controller Computer with the RS232 (Null Modem) cable. For modern computer which do not have a RS232 port, a USB to RS232 (Converted) cable is used to connect the Graphical User Interface Computer to the RS232 to RS232 (Null Modem) cable.
Note : a 3 1/2” boot disk is also available to boot the CNC Controller PC.
Features
Runs on almost any PC which has : WIN 10, 8, 7, XP, Millenium, NT 2K, 98.
Has camera display. Connect your web cam and view the part being machined.
Since the CNC Controller is running on a dedicated PC, it does not load the CPU of your Desktop or Laptop.
An interactive interface that visually show you what to do with easy to understand instructions.
An easy 3 steps process that is simple and effective :
1-Connect Communication Cable
2-Boot Controller
3-Start Machining
Any PC computer with a standard parallel port and a standard COM (RS232) port can be used for the CNC Controller.
High fidelity and Dependable Real Time Embedded software for 4 axis CNC motion control.
Has soft limit switches that can abort the motion when the CNC moves outside the work area.
The hardware limit switches, external abort signal, and soft limit switches can be enabled or disabled.
Software configuration automatically saved and loaded.
Flexible configuration via an easy user interface.
Interrupt speed can be configured for up to 100kHz operation.
Has an intuitive file browser that remembers the last working file path.
Easily load pre-defined machining parameter files for : wood, plastic, metal; with one click of the mouse button.
For Stepper Motor; has driver for : pulse and direction, plus inverted pulse and direction.
Can be utilized with almost any bipolar stepper motor driver.
Has self boot code that allow booting directly from almost any IBM compatible PC.
Has software abort signal that can be wired to an abort switch and has input for limit switches on all axis.
Controller software has access to all available PC memory (Protected Mode).
Has "jog mode" to move any axis with the mouse.
Automatic Homing and Quick Zeroing Procedure.
PWM Spindle speed and direction control to operate your variable speed spindle.
Can interpret G-CODE produced by the RoutCad® CAD-CAM package or almost any CAM packages.
Graphically display g-code tool path.
Zoom and Scroll feature to better see the part being machined.
Display the full g-code list and highlight the g-code instruction line being executed.
Can operate in Imperial Units (in) or SI Units (cm).
Upon power down; records all axis positions, when the PC is booted up again, the software remembers it last position.
Has predefined parameter files that can be quickly loaded for machining different type of materials.
Can interpret Rout-Script CODE produced by the RoutCad® CAD-CAM package.
Download your g-code file to the CNC Controller once, then machine it as many time as necessary.
Stop your CNC instantly by clicking the Emergency Stop Button.
Capable of outputing very high stepper motor pulse rate.
Reliable and Professional made product.
CNC Controller PC can be booted from floppy or boot CD.
CNC last position is saved and retrieved next time system is powered up.
